Name: HR150DTP Touch screen Digital Plastic Rockwell Hardness Tester
Brand: HUATEC
Price: 2530 USD

Brand Name : HUATEC

Model Number : HR-150DT-P

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD2530/set - USD2860/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Initial test force : 10 KGF (98.07 N)

Total load of Rockwell : 60kgf(588N) 100kgf(980N) 150kgf(1471N)

Load value error : Less than 0.5%

Hardness measurement accuracy : 0.1HR

Max Height of Sample : 200mm

Distance of Indenter to outer wall : 200mm

Load retention time : 0-99s

Data storage : Can store 20 test results, built-in printer RS-232 interface

Contact Now

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

I, Product Description:

Using weights electric loading, high-precision sensor.

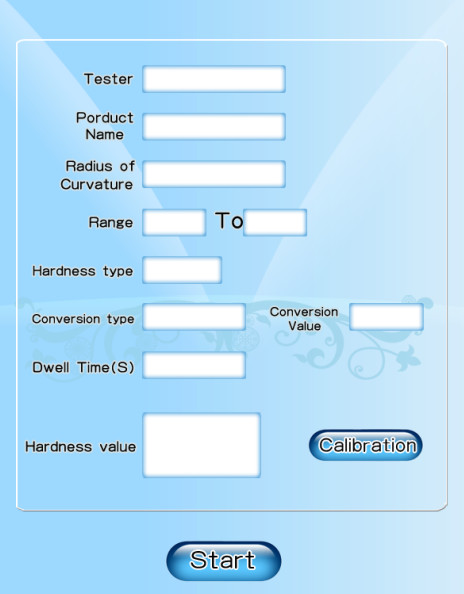

Touch screen interface, easy to operate.
According to the standard hardness block, each hardness scale is divided into high, medium and low three sections for automatic correction.
Built-in convex cylinder hardness correction.
Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, over limit automatic alarm, can input tester, sample name and other information.
The test results can be automatically stored, processed and printed.

II, Technical parameters:

Model number	HR-150DT-P
Initial test force	10 KGF (98.07 N)
Total test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Rockwell hardness scale	HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Scope of testing	HRE:70-100 HRL:100-120 HRM:85-110 HRR:114-125
Load retention time	0-99s
Hardness value resolution	0.1 HR
Test force error	< 1.0%
Data output	LCD display
Touch screen size	8 inches
Data storage	Can store 20 test results, built-in printer RS-232 interface
Compliant with standards	GB/T230.2, GB/T3398.2, JB/T7409
Maximum allowable specimen height	200mm
Distance from indenter to machine wall	200mm
Size	560×200×800mm
Weight	70kg
Power supply	AC220+5%,50 to 60Hz

III,Standard accessories:

Name	quantity	Name	Quantity
Touchscreen pen, printer paper	1 each	Large, medium, and V-shaped test stands	1 each
Ball indenter (diameter 3.175, 6.35, 12.7mm)	3 pieces	Hardness blocks (HRE,HRL,HRM,HRR)	4 blocks
Spirit level	1	Horizontal adjustment foot	4
Power cord	A root	Dust bag	1
Product certificate, warranty card	1 copy	Instructions	1 copy

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
