Name: HPA2SE Metallographic Grinding Polishing Machine 1KW Motor
Brand: HUATEC
Price: 1 USD

Brand Name : HUATEC

Model Number : HPA-2SE

Certification : ISO,CE

Place of Origin : China

Motor power : Motor power

Working disk diameter : φ254 mm (optional φ200, φ230, φ300mm)

RPM (r/min) : 5-1000.

Four-speed manual (r/min) : V1=200, V2=400, V3=600, V4=800 (user can change)

Contact Now

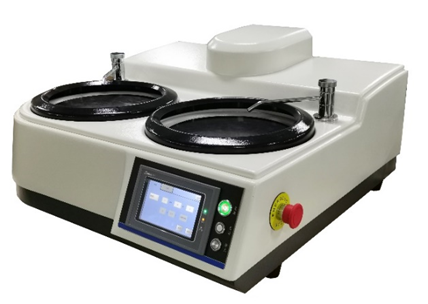

HPA-2SE Metallographic Grinding & Polishing Machine

PLC+ high power motor, double grinding disc;
1KW high power motor , no matter the speed is fast or slow, the torque is large and constant;
The speed range is wide, from 5 RPM to 1000 RPM (maximum 1500 RPM);
The working table quickly starts and stops, and the turntable can stop rotating in 2 seconds;
Speed, grinding time, rotation direction and other grinding parameters, and automatically save, easy to call;
Manual mode, four gears;
Imported PLC brand, reliable quality;
Touch screen interface, easy to set grinding and polishing parameters;
Connect and control polishing droplet (optional).

Item	Specifications
Model	HPA-2SE
Motor power	1Kw
Working disk diameter	φ254 mm (optional φ200, φ230, φ300mm)
RPM (r/min)	5-1000.
Turning direction	Counterclockwise/clockwise optional, positive and negative turn automatic switch
Programming	User can self-program, call
Four-speed manual (r/min)	V1=200, V2=400, V3=600, V4=800 (user can change)
Overall dimension (mm)	760 x 730 x 360 (L * W * H)
Weight	38kg

Name	quantity	Name	Quantity
Anti-stick disc (254mm)	2	Magnetic working disc (254mm)	2
Sandpaper (with back glue, 250 diameter) 180#, 800#, 1500#	2 each	Diamond suspension grinding polish 6 microns 200 ml	1 bottle
Flocking polishing cloth (with back glue, 250mm)	1 sheet	Canvas polishing cloth (with back glue, 250mm)	1 piece

3. Standard accessories

Name	quantity	Name	Quantity
Anti-stick disc (254mm)	2	Magnetic working disc (254mm)	2
Sandpaper (with back glue, 250 diameter) 180#, 800#, 1500#	2 each	Diamond suspension grinding polish 6 microns 200 ml	1 bottle
Flocking polishing cloth (with back glue, 250mm)	1 sheet	Canvas polishing cloth (with back glue, 250mm)	1 piece

Product Tags:

HPA-2SE metallographic grinding machine
