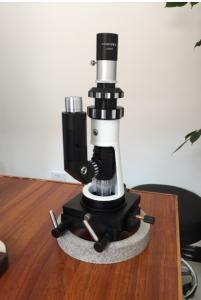

HSC-500 Portable Metallurgical Microscope 100X-500X Magnification

Name: HSC500 Portable Metallurgical Microscope 100X500X Magnification
Brand: HUATEC
Price: 1050 USD

China HSC-500 Portable Metallurgical Microscope 100X-500X Magnification wholesale

Brand Name : HUATEC

Model Number : HSC-500

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD1050/set - USD1185/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Eyepiece : WF10X/ф6

Objective : 10X, 20X,50X

Total Magnification : 100X-500X

Focusing range : 25mm

Mechanical tube length : 160mm

Power supply : 3.6v

Contact Now

HSC-500 Portable Metallurgical Inspection Sample Organization Analysis Microscope

Product Description:

HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.

Applicable to metallographic inspection of various work pieces which is large or unable to make sample.

No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.

This machine can identify different metal and alloy organization structure.

Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.

Main Parameters:

No.	Item	Specification
1	Eyepiece	WF10X/ф6
2	Objective	10X, 20X,50X
3	Total Magnification	100X-500X
4	Focusing range:	25mm
5	Mechanical tube length:	160mm
6	Power supply	3.6v
7	Weight	N.W.: 0.75kg G.W.: 0.9kg
8	Dimension	Instrument dimension: 230X110X70(mm)

Standard configuration:

No.	Item	Main Specification	Unit	Quantity
1	Main unit	HSC-500	Set	1
2	Objective	10X, 40X,50X (optional)	Piece	1 each
3	Eyepiece	10X	Piece	1
4	Illuminator	Installed on the main body	Piece	1
5	Battery charger		Piece	1
6	Magnetic base		Piece	1
7	C mount adapter		Piece	1
8	Instruction manual		Piece	1
9	Calibration certificate		Piece	1

Optional parts:

Eyepiece: 12.5X

Objective: 50X
