XXGH-3005 300kV Industrial NDT X-ray Machine with Ceramic Tube

XXGH-3005 300kv Industrial NDT Radial X-ray Machine Ceramic Tube Circumferential Conical Target

1 Overview

The controller adopts a new type of control structure; it can be applicable to various X-ray generators with various parameters. The controller provides a friendly human machine interface, including unique LED status indications, industrial stepless knobs for adjusting parameters, with clear display and fast adjustment speed. It adopts modular structure, with high reliability, and it is easy for disassembly and maintenance. The full automatic training mode with automatic voltage reduction function when generator discharging can effectively protect the life of X-ray tube. Besides, it offers accurate fault detection, easy for usage and maintenance.

The controller includes the following features:

• Industry-leading expert intelligent X-ray control system, high anti-interference.
• Modular main circuit structure, air duct heat dissipation design, high reliability for continuous operation.
• Industrial stepless knobs for time and kilovolt regulation, which is fast, convenient and reliable.
• Chopper control of start-up speed, adaptive different X-ray generators.
• Unique soft-start and slow turn-off voltage control function for advantageously protecting X-ray generators.
• The pioneering automatic training mode provides automatic voltage reduction protection during generator discharging, with automatic time follow-up.
• The casing side is equipped with working state indicators, which is convenient for long-distance observation.
• Equipped with safety door interlocking input terminal, it can be connected to the safety door control to ensure personnel safety.
• The exposure time delay can be settable.
• It is convenient to disassembling the cooling fan for regular cleaning, ensuring the long-term stability of the controller.
• The upper cover adopts internal buckling mode, which is convenient and reliable, and can be located at any opening angle.
• The controller casing is equipped with rubber shock-absorption guards, suitable for outdoor work.
• The exposure time can be recorded accumulatively, which is convenient for users to understand the exposure conditions.
• No need to open the cover, the specific combination button operation can realize the selection of X-ray generator model.

• List of the main parameters-XXG series

  TYPE ITEM			XXGH-3005
  Max Penetration thickness Steel (A3)			40mm
  Focal Distance			600mm
  Exposure Time			5min
  Film Type			HUATEC T7
  Double lead foil Intensifying screen			0.03
  Darkroom Disposal			20±2℃
  Development			5minutes
  Blackness			1.5
  Input	Voltage (V)		220V±10% 50―60Hz
  	Capacity (KVA)		3.0
  Output	Tube voltage (KVP)		150-300
  	Tube current (mA)		5
  	Stability		±1%
  X-RAY Tube	Focus mm2		1.0×2.5
  	Radiation Angle		360°*30°
  Sensitivity			k≤1.8%
  Operation Mode			Intermittent operation, Radiating time to cooling time is 1:1
  X-Ray Controller		Dimension	270×270×140
  		Weight	9kg
  		Circuit Structure	Micro-computer control ,Modular structure,Voice prompt
  X-RAY Generator		Cooling	Force air cooling
  		Insulation	SF6 Gas Insulation
  		Working Pressure	0.35Mpa-0.45Mpa
  		Dimension	340×340×700
  		Weight (kg)	32kg
  Working Temperature			-10℃―+40℃

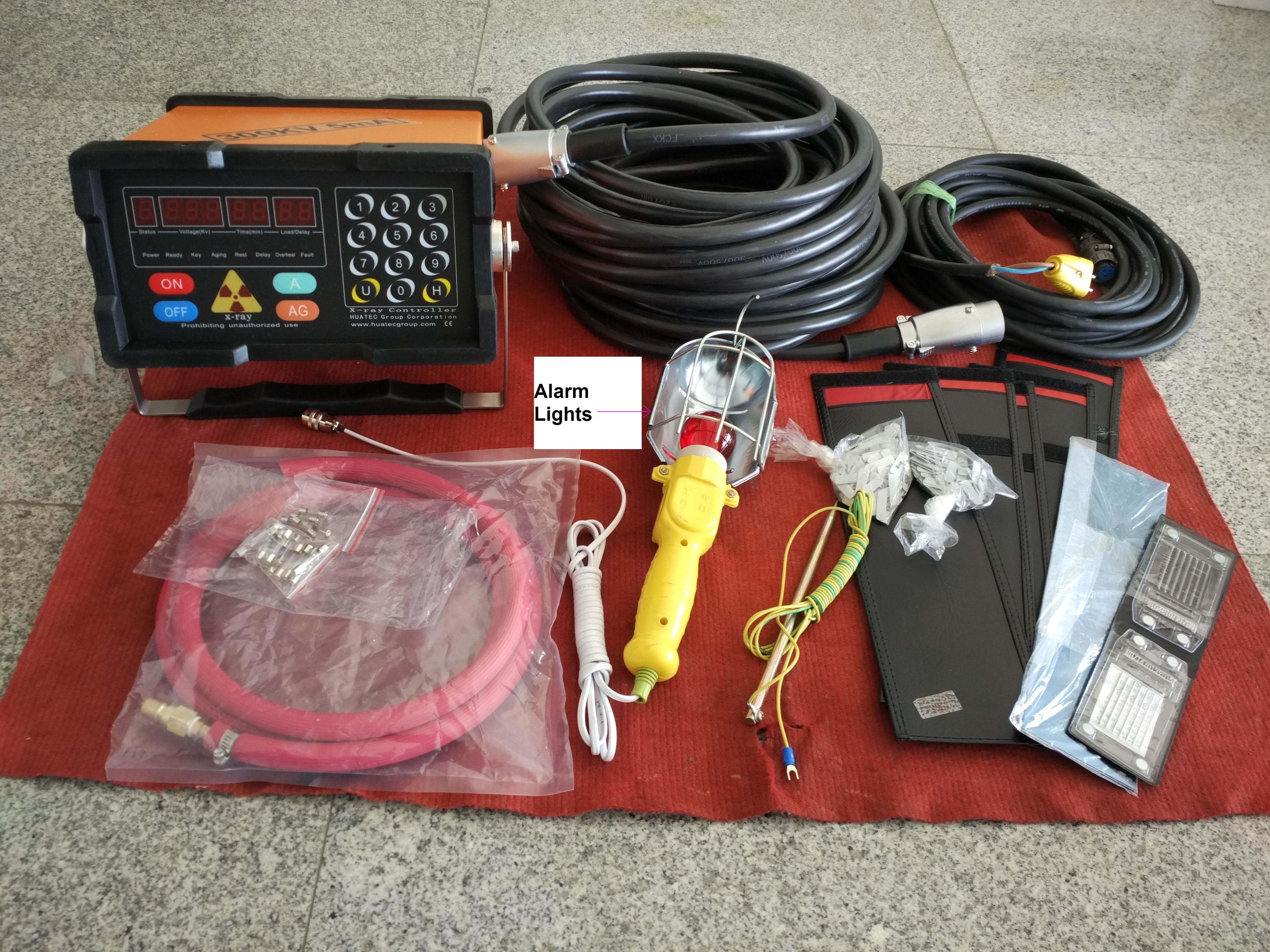

• Standard Delivery
  Panoramic ceramic X-ray tube 1 Pcs
  Generator 1 Set
  High voltage joins cable 1 Pcs 25 Meters
  Controller 1 Set
  Power cable 1 Pcs 10 Meters
  Grounding cable 1 Pcs 5 Meters
  Accessories 1 Set (Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
