SRT-5000 OLED Display Real-time Monitoring Ra/Rz/Rq/Rt Surface Roughness Tester

Name: SRT5000 OLED Display Realtime Monitoring RaRzRqRt Surface Roughness Tester
Brand: HUATEC
Price: 575.00 USD

China SRT-5000 OLED Display Real-time Monitoring Ra/Rz/Rq/Rt Surface Roughness Tester wholesale

Brand Name : HUATEC

Model Number : SRT-5000

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : US$575.00 - 650.00/set

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 Sets/Month

Delivery Time : 3-5 working days after receipt of your payment

Packaging Details : Outer carton packaging

Measurement Parameters(µm) : Ra Rz Rq Rt

Stroke Length（mm） : 6

Sampling Length（mm） : 0.25 ，0.80 ，2.50

Measurement Range（µm ） : Ra：0.05 ~ 10.0 ;Rz：0.1 ~ 50

Error of Indication : ±15%

Varation of Indication : ＜12%

Sensor guide head pressure : ≤ 0.5N

Contact Now

SRT-5000 OLED display Real-time monitoring Ra/Rz/Rq/Rt Surface Roughness Tester

Features:

Appearance using pull aluminum mould design, durable, anti-electromagnetism interference ability significant, accord with current design new trend.
By using high-speed DSP processors for the data processing and calculation, measuring and calculation speed is greatly improved.
Liquid crystal adopts popular OLED display, high brightness, no perspective, wide temperature.It is suitable for various applications.
Using lithium ion rechargeable batteries, it can work long hours with no memory effect.It also can work with charging .Charging time is short, while the battery life is long.
Use the common USB interface to charge and communication .Use special charger or the computer USB port of chargeIt’s convenient and quick.
Dot matrix LCD display, interface message is rich.
Real-time monitoring of lithium battery power and display, electric charge and timely remind users.
Automatic shutdown function, low power consumption and hardware design make instrument working hours exceeds. It is suitable for all kinds of field use.
The sensors head has the protect door, which protect the head of the sensors effectively. Guarantee the accuracy of measurement.

SPECIFICATIONS:

Measurement Parameters(µm)	Ra Rz Rq Rt
Stroke Length(mm)	6
Sampling Length(mm)	0.25 , 0.80 , 2.50
Evaluation Length(mm)	1.25 , 4.0 ,
Measurement Range(µm )	Ra: 0.05 ~ 10.0 Rz: 0.1 ~ 50
Error of Indication	±15%
Varation of Indication	＜12%
Tip arc radius	10 µm±1 µm Angle:90
Touch needle static force measurement	≤ 0.016N
Force measurement rate	≤ 800N/m
Sensor guide head pressure	≤ 0.5N
Battery	3.7V Lithium Ion battery
Contour Dimension	106 mm×70 mm×24 mm
Weight	200g
Temperature	-20℃～40℃
Relative Humidity	< 90% Surrounding no vibration and no corrosive medium.

Standard Accessories:
Main unit…………… . ..1pc.
Carrying case………… 1 pc.
Operation manual…….1 pc.
Standard sample plate…1 pc
Product certificate …. 1 pc

SRT-5000 OLED Display Real-time Monitoring Ra/Rz/Rq/Rt Surface Roughness Tester

Product Tags:

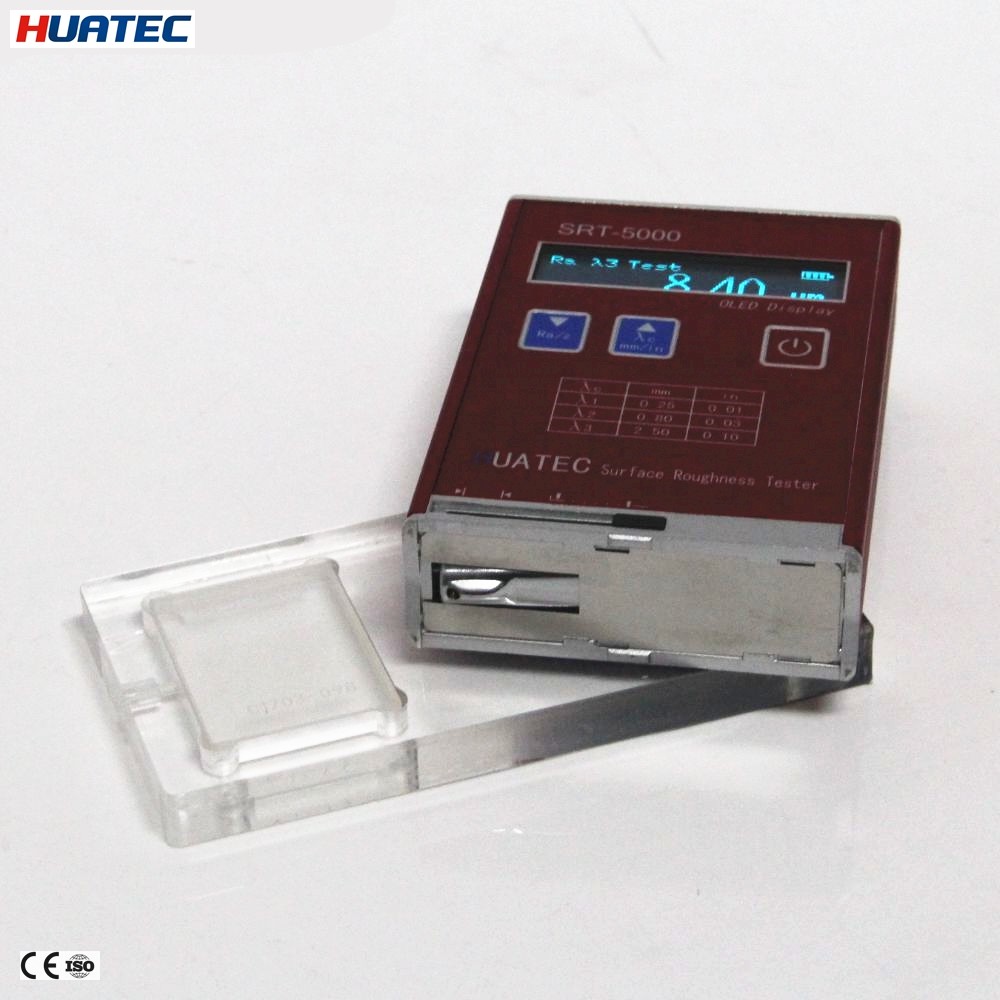

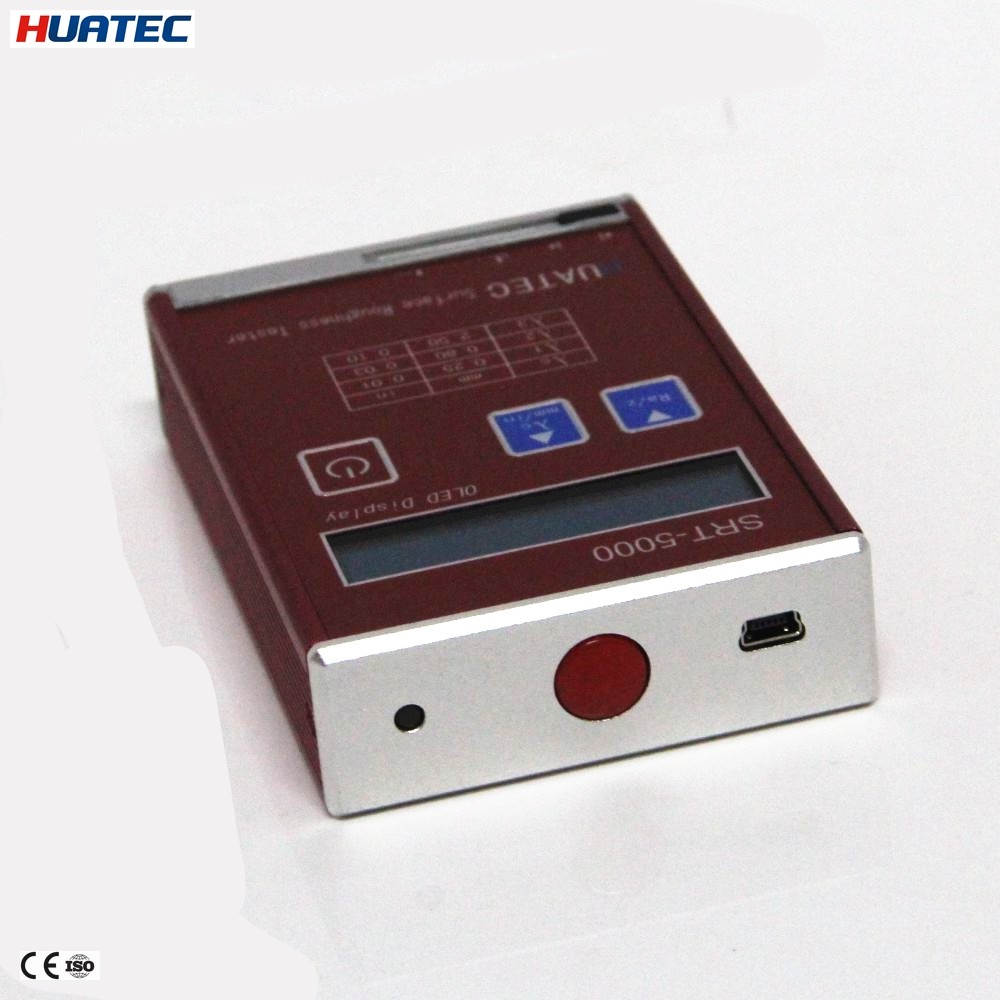

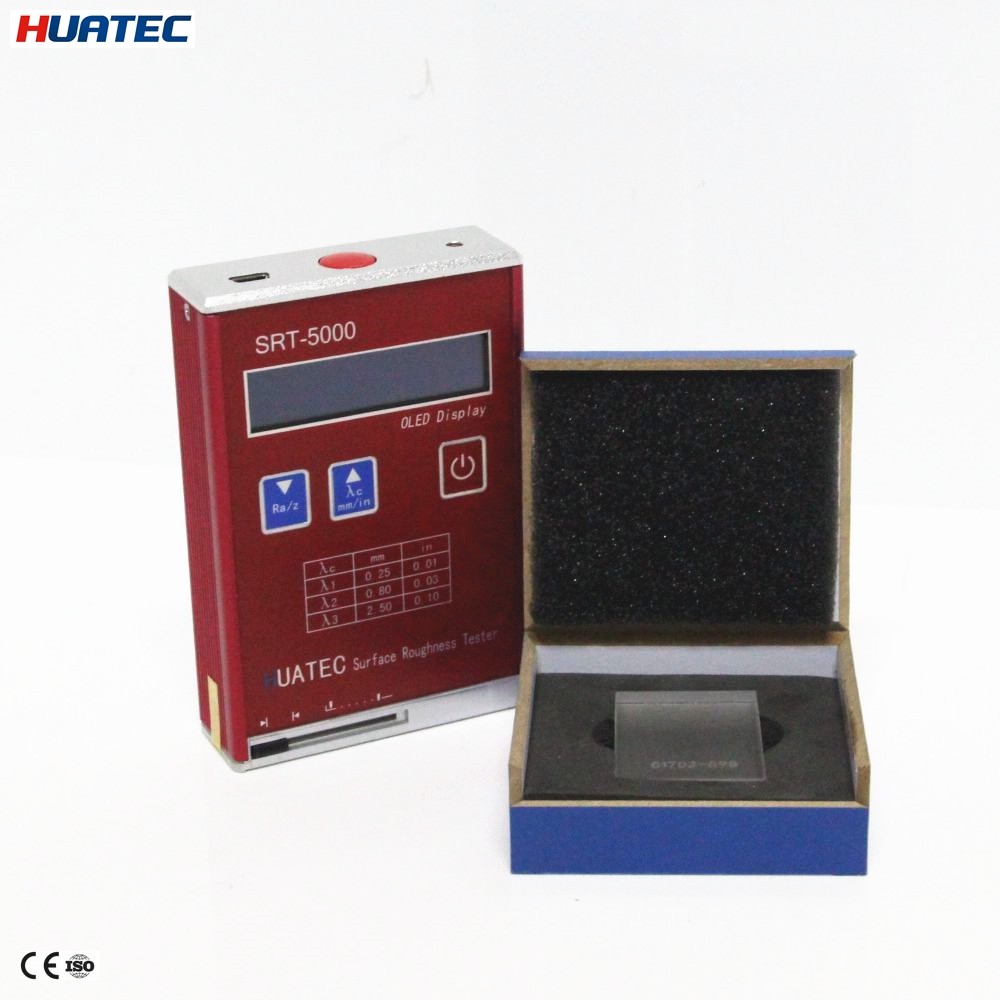

SRT-5000 OLED Display Real-time Monitoring Ra/Rz/Rq/Rt Surface Roughness Tester Images
