Brand Name : HUATEC
Model Number : HDL-360
Certification : ISO,CE,Gost
Place of Origin : China
MOQ : 1 set
Payment Terms : T/T, Western Union,Paypal
Supply Ability : 100 sets per month
Delivery Time : 3-7 days
Packaging Details : in High quality carton
Product name : Film dryer
Drying process : → → Water washing → → Drying → →
Film development speed : 40-240s adjustable
Sheet feeding width : 360 m
Power supply : 200-240V. 50/60Hz 5A
Volume : 560mmX480mx545mm

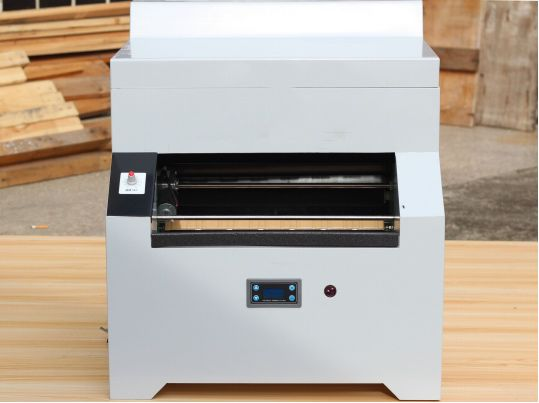

HDL-360 speed adjustable x-ray film dryer
Technical parameters and specifications
● Drying process: → → Water washing → → Drying → →
● Film development speed: 40-240s adjustable
● Sheet feeding width:. 360 m
● Moving speed: 710mm/min (running time: 40 seconds)
● Dry tablet quantity 80X360mm (4 "X14") film 450 sheets per hour (dry film speed 40s)
● Power supply: 200-240V. 50/60Hz 5A
● Water consumption: 2 l/min during film operation
● Volume: 560mmX480mx545 (length x width x height)
● Add the function of chip induction
● Improved air duct, higher drying efficiency
● Roller shaft: DuPont foamed uranium is used to ensure that it will not harden within 5 years
● Shell: engineering PVC plastic
● Heating element: PTC heating element
● Temperature control mode: constant temperature control with solid-state relay
● Optional parts: water washing circulating device, which aims at no tap water, poor water quality or frequent water stoppage at the use site
